Solid Copper Grounding Busbar System – Custom Size Electrical Bus Bar | UL 467 & IEC 61439

PRODUCT PARAMETERS

✅ Ultra-High Conductivity
100% IACS conductivity (superior to aluminum/steel alternatives)
Low electrical resistance: ≤ 0.00000167 Ω·cm
✅ Robust Construction
Material: Solid Copper (C11000) per ASTM B187
Thickness: 3mm to 30mm (standard) | Custom up to 50mm
Surface Options: Bare copper, tinned, or silver-plated
✅ Safety & Compliance
Certified: UL 467, IEC 61439-1, IEEE 80, NFPA 70 (NEC)
Lightning protection: IEC 62305 compliant
✅ Customization Flexibility
Hole Patterns: Drilled/tapped for lugs, cables, or DIN rails
Shapes: Flat bars, angles, or complex CNC-machined profiles
Markings: Laser-etched safety labels (voltage warnings, grounding symbols)
✅ Corrosion Resistance
Salt spray tested: 1,500+ hours (ASTM B117)
Ideal for coastal, chemical, or high-humidity enviro

REQUEST A QUOTE

Description

FAQs

Request A Quote

Description

General

Material	pure copper or tinned copper or copper clad steel
Length	100mm-3000mm
Wide	25mm-200mm
Thickness	3mm-20mm
Suface	Tinned or Nickeled surface is available
Service life	More than 50 years
Available service mode	OEM,ODM
Certificate	ISO9001:2015

Product common specifications and Size(Accept Customization)Negotiable Price According to different material/size and and Purchase quantity

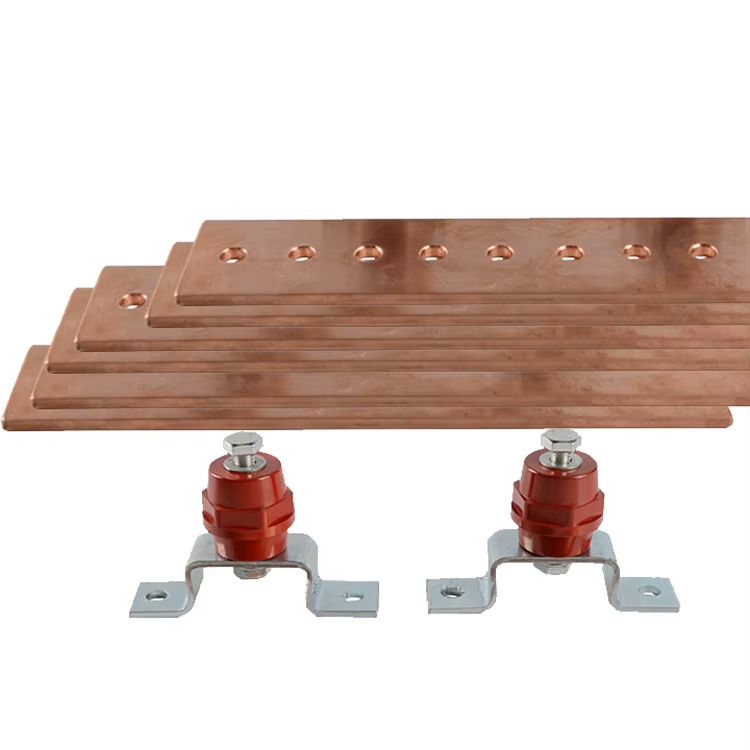

Grounding copper bus bar arrangement	1.Copper bus bar or Tinned copper bus bar or Nickeled copper bus bar
	2. Copper bus bar or Tinned copper bus bar or Nickeled copper bus bar,support
	3. Copper bus bar or Tinned copper bus bar or Nickeled copper bus bar,insulator
	4. Copper bus bar or Tinned copper bus bar or Nickeled copper bus bar,support,insulator
Thickness	3mm 4mm 5mm 6mm 8mm 10mm 12mm 20mm
Wide	25mm 30mm 40mm 50mm 60mm 80mm 100mm 120mm 200mm
Length	100mm—3000mm
Cable Size	φ8mm-φ25mm

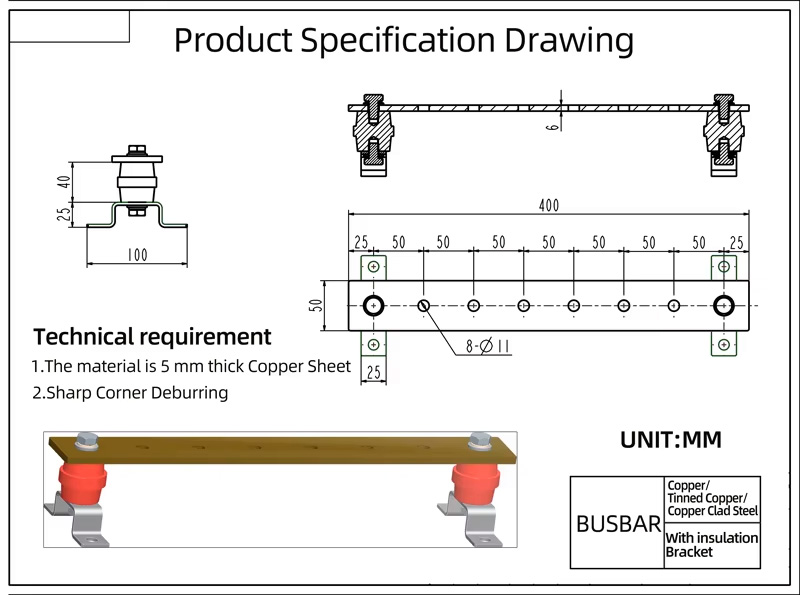

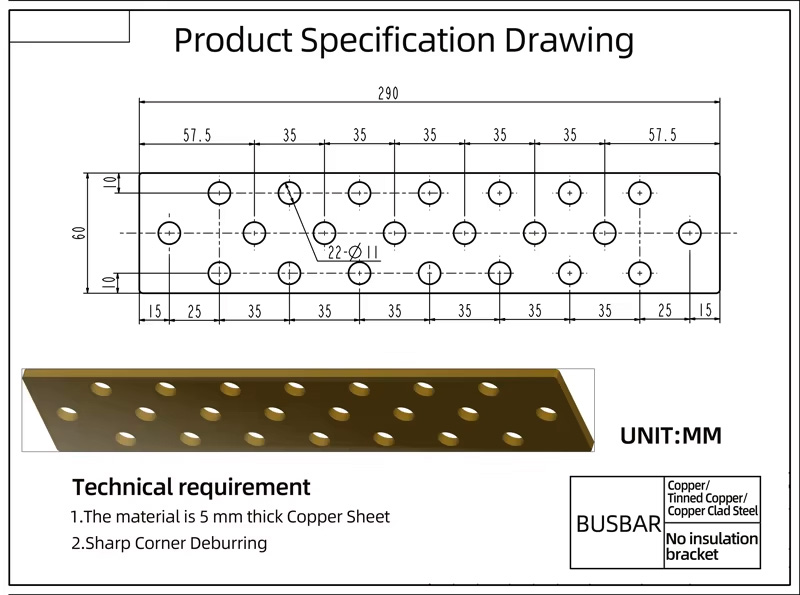

Size

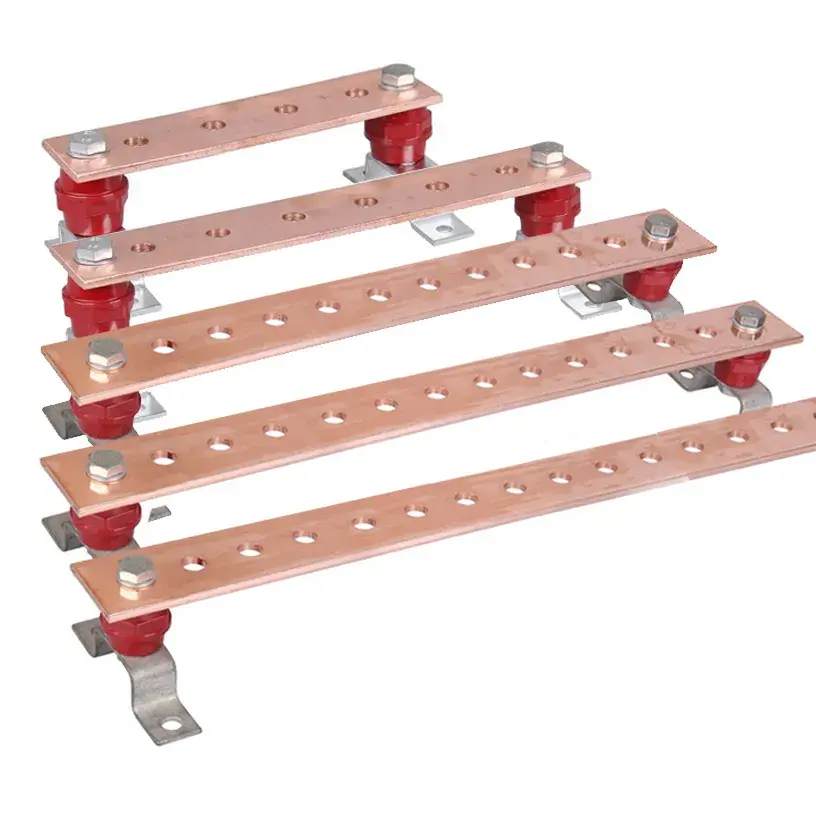

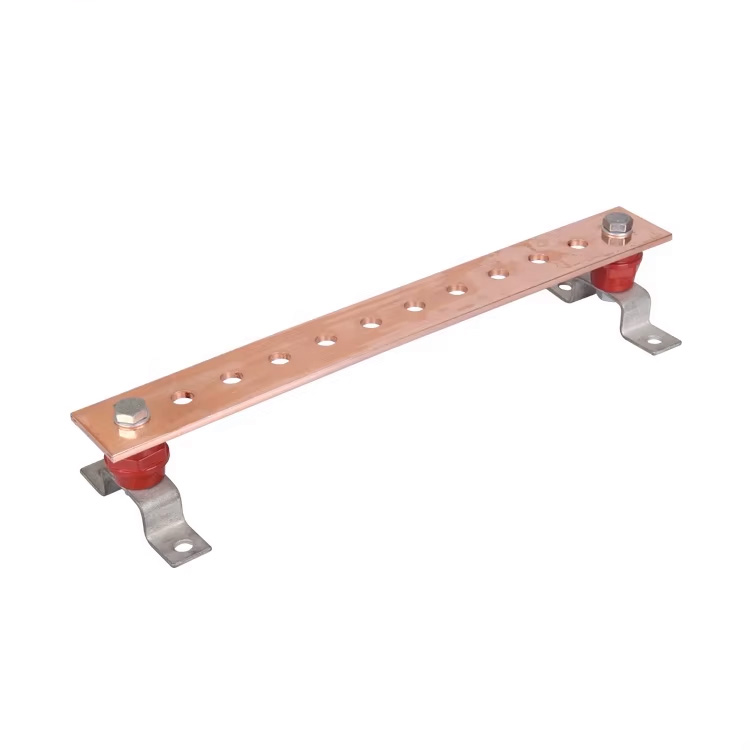

Earth Busbar
Size(mm)	Material	Number of holes	Insulator specification	Bracket specification	Matching bolt size
330300	Copper/Tinned Copper	Single/Double row hole	SM40	H=25MM	M8*25
340300	Copper/Tinned Copper	Single/Double row hole	SM40	H=25MM	M8*25
340400	Copper/Tinned Copper	Single/Double row hole	SM40	H=25MM	M8*25
440250	Copper/Tinned Copper	Single/Double row hole	SM40	H=25MM	M8*25
440300	Copper/Tinned Copper	Single/Double row hole	SM40	H=25MM	M8*25
440400	Copper/Tinned Copper	Single/Double row hole	SM40	H=25MM	M8*25
540400	Copper/Tinned Copper	Single/Double row hole	SM40	H=25MM	M8*25
550300	Copper/Tinned Copper	Single/Double row hole	SM40	H=25MM	M10*25
550400	Copper/Tinned Copper	Single/Double row hole	SM40	H=25MM	M10*25
650300	Copper/Tinned Copper	Single/Double row hole	SM40	H=25MM	M10*25
650450	Copper/Tinned Copper	Single/Double row hole	SM40	H=25MM	M10*25
650500	Copper/Tinned Copper	Single/Double row hole	SM40	H=25MM	M10*25
850800	Copper/Tinned Copper	Single/Double row hole	SM40	H=25MM	M10*25
560400	Copper/Tinned Copper	Single/Double row hole	SM50	H=25MM	M10*25
660350	Copper/Tinned Copper	Single/Double row hole	SM50	H=25MM	M10*25
660400	Copper/Tinned Copper	Single/Double row hole	SM50	H=25MM	M10*25
660500	Copper/Tinned Copper	Single/Double row hole	SM50	H=25MM	M10*25
5100300	Copper/Tinned Copper	Single/Double row hole	SM50	H=25MM	M10*25
6100330	Copper/Tinned Copper	Single/Double row hole	SM50	H=25MM	M10*25
6100400	Copper/Tinned Copper	Single/Double row hole	SM50	H=25MM	M10*25
6100500	Copper/Tinned Copper	Single/Double row hole	SM50	H=25MM	M10*25
8100300	Copper/Tinned Copper	Single/Double row hole	SM50	H=25MM	M10*25
10100690	Copper/Tinned Copper	Single/Double row hole	SM50	H=25MM	M10*25

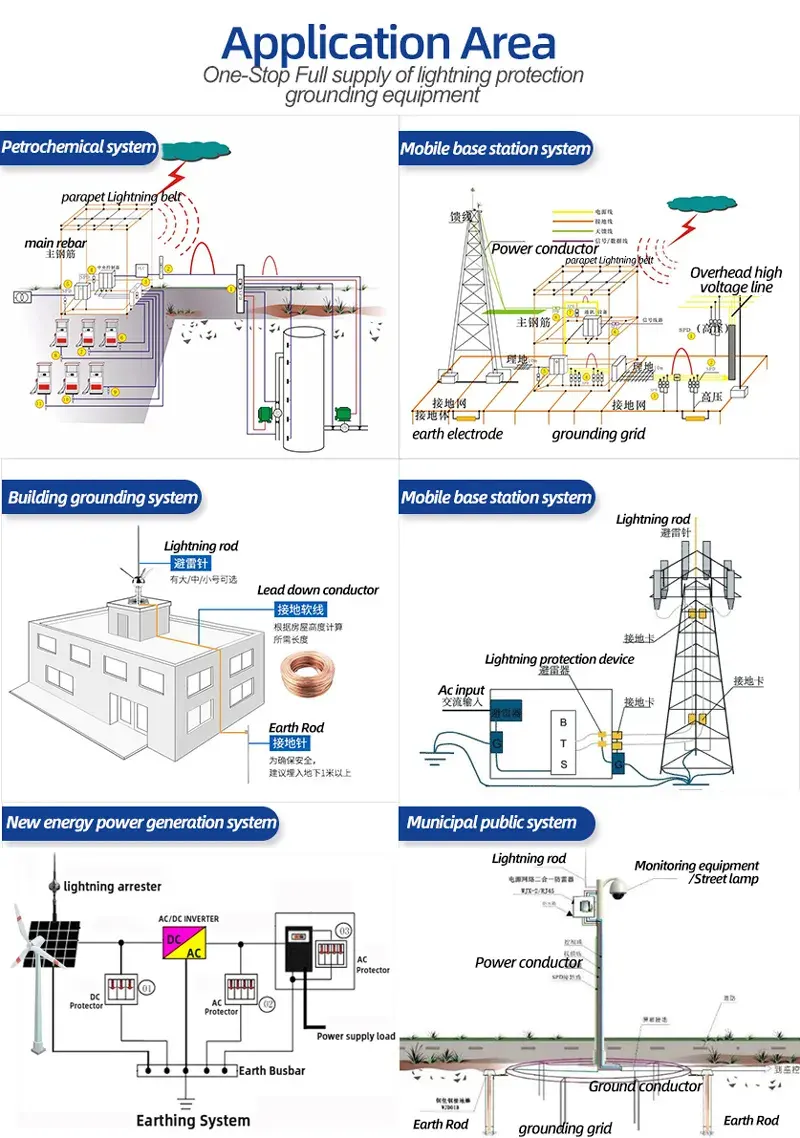

Application
